Understanding Concrete

Concrete. It’s the silent, unassuming backbone of our modern world. We walk on it, drive on it, live in it, and often take it for granted. But behind its seemingly simple appearance lies a complex material with a rich history, fascinating chemistry, and a crucial role in shaping our civilization. This post will delve deep into understanding concrete, exploring its composition, properties, manufacturing process, applications, and future trends.

1. A Brief History of Concrete: A Timeless Building Block

The story of concrete is much older than you might think. While modern concrete is a relatively recent invention, the idea of binding aggregate together to create durable structures dates back millennia.

• Ancient Origins: The earliest known examples of concrete-like materials were used by the Nabataeans in the 7th millennium BC. They discovered an early form of hydraulic lime, which could harden underwater, and used it to construct cisterns, underground buildings, and early paved floors.
• The Roman Revolution: The Romans were the true pioneers of concrete technology. They refined the process, using volcanic ash (pozzolan) mixed with lime to create exceptionally strong and durable concrete. Roman concrete, or opus caementicium, was instrumental in the construction of iconic structures like the Pantheon, the Colosseum, and numerous aqueducts, bridges, and roads that still stand today.
• A Lost Art and Rediscovery: After the fall of the Roman Empire, the secrets of Roman concrete were largely lost. The focus shifted back to traditional building materials like stone and wood. It wasn’t until the mid-18th century that engineers began to rediscover and re-experiment with hydraulic cements.
• The Birth of Modern Cement: In 1824, Joseph Aspdin, a British bricklayer, patented “Portland cement.” Aspdin’s cement, produced by heating limestone and clay together and then grinding the resulting clinker, possessed superior strength and durability compared to previous cements. Its color also resembled Portland stone, a popular building material, hence the name.
• Reinforced Concrete: A Paradigm Shift: The invention of reinforced concrete in the mid-19th century marked another pivotal moment. By embedding steel bars within the concrete, engineers could overcome concrete’s weakness in tension (pulling forces). This revolutionary combination harnessed the compressive strength of concrete and the tensile strength of steel, creating a material capable of spanning greater distances and supporting heavier loads.
• Concrete Today: Modern concrete technology continues to evolve. Researchers are constantly developing new cement types, admixtures, and construction techniques to improve its performance, durability, and sustainability. From high-performance concrete for skyscrapers to self-healing concrete for infrastructure, the possibilities for concrete are seemingly endless.

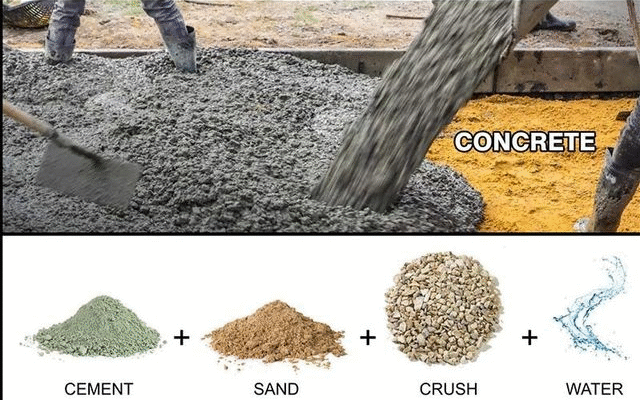

2. Understanding the Composition: What’s in Concrete?

Concrete is a composite material, meaning it’s made up of several different components working together to achieve its desired properties. The key ingredients are:

• Cement: Cement is the glue that binds the other ingredients together. Portland cement is the most common type, and its production involves heating a mixture of limestone, clay, and other materials to high temperatures, forming a hard, nodular substance called clinker. The clinker is then ground into a fine powder, which reacts with water in a process called hydration to form a strong, durable matrix. Different types of Portland cement are available, each with specific properties for different applications (e.g., rapid hardening, sulfate resistance).
• Aggregates: Aggregates make up the bulk of the concrete mix, typically 60-80% by volume. They provide strength, stability, and dimensional stability to the concrete. Aggregates are classified as fine aggregates (sand) and coarse aggregates (gravel or crushed stone). The size, shape, and grading of the aggregates significantly influence the workability, strength, and durability of the concrete.
• Water: Water is crucial for the hydration process, which allows the cement to bind the aggregates together. The water-cement ratio (w/c ratio) is a critical parameter. A lower w/c ratio generally leads to higher strength and durability, but also makes the concrete less workable. The water must be clean and free of impurities that could interfere with the hydration process.
• Admixtures: Admixtures are chemical or mineral additives added to the concrete mix to modify its properties. They can be used to:
  • Improve Workability: Plasticizers and superplasticizers (also known as water reducers) increase the slump (consistency) of the concrete without adding more water, allowing for easier placement and consolidation.
  • Accelerate or Retard Setting: Accelerators speed up the setting time of concrete, while retarders slow it down, allowing for longer working times, especially in hot weather.
  • Enhance Durability: Air-entraining agents create tiny air bubbles in the concrete, improving its resistance to freeze-thaw cycles. Corrosion inhibitors protect the reinforcing steel from corrosion.
  • Modify Strength: Pozzolans (like fly ash or silica fume) can be added to react with the calcium hydroxide produced during hydration, forming additional cementitious compounds and increasing long-term strength and durability.
  • Color Concrete: Pigments are used to achieve desired aesthetic effects.

3. The Hydration Process: The Chemistry Behind Concrete’s Strength

The hydration of cement is a complex chemical process that is essential to the development of concrete’s strength and durability. When cement is mixed with water, a series of chemical reactions occur, leading to the formation of hydration products that bind the aggregates together.

• Dissolution and Ionization: Initially, the cement compounds dissolve in water, releasing ions like calcium, silicon, aluminum, and iron.
• Formation of Hydration Products: These ions react to form various hydration products, including:
  • Calcium Silicate Hydrate (C-S-H): This is the most important hydration product, responsible for the majority of concrete’s strength and durability. C-S-H is a gel-like substance that grows and interlocks, forming a strong, dense matrix.
  • Calcium Hydroxide (CH): CH is another hydration product. While it contributes to early strength, it is also susceptible to leaching and can react with atmospheric carbon dioxide in a process called carbonation.
  • Ettringite: Ettringite forms early in the hydration process and contributes to initial setting.
• Setting and Hardening: As the hydration products form, they begin to precipitate and crystallize, leading to the setting and hardening of the concrete. The concrete gradually gains strength over time, with a significant portion of the strength development occurring within the first 28 days.
• Factors Affecting Hydration: The rate and extent of hydration are influenced by several factors, including:
  • Water-Cement Ratio: A lower w/c ratio leads to a denser matrix and higher strength.
  • Temperature: Higher temperatures generally accelerate hydration, while lower temperatures slow it down.
  • Cement Type: Different cement types hydrate at different rates.
  • Admixtures: Certain admixtures can accelerate or retard hydration.
  • Curing: Proper curing, which involves keeping the concrete moist, is essential for complete hydration and maximum strength development.

4. Properties of Concrete: Understanding its Strengths and Weaknesses

Concrete possesses a unique set of properties that make it a versatile and widely used construction material. Understanding these properties is crucial for designing and constructing durable and safe structures.

• Compressive Strength: Concrete excels in resisting compressive forces (forces that squeeze or crush). This is its primary strength characteristic and the one most often specified in design. Compressive strength is typically measured by crushing cylindrical or cubic specimens in a laboratory. The compressive strength of concrete can range from 2,500 psi (17 MPa) to over 20,000 psi (140 MPa) depending on the mix design and curing conditions.
• Tensile Strength: Concrete is weak in tension (forces that pull or stretch). Its tensile strength is typically only about 10-15% of its compressive strength. This is why reinforcing steel is essential in concrete structures to resist tensile stresses. Tensile strength can be measured by various methods, including flexural strength (bending) and split-cylinder tests.
• Durability: Concrete’s durability refers to its ability to resist deterioration over time due to environmental factors. Factors that can affect concrete’s durability include:
  • Freeze-Thaw Cycles: Repeated freezing and thawing of water within the concrete can cause it to crack and crumble. Air-entrained concrete is highly resistant to freeze-thaw damage.
  • Chemical Attack: Exposure to acids, sulfates, and other chemicals can degrade the concrete. Sulfate-resistant cements and protective coatings can be used to mitigate chemical attack.
  • Abrasion: Concrete surfaces can be worn down by abrasion from traffic or other sources. Hard aggregates and surface treatments can improve abrasion resistance.
  • Corrosion of Reinforcing Steel: Corrosion of the reinforcing steel can lead to cracking and spalling of the concrete. Proper concrete cover, corrosion inhibitors, and epoxy-coated rebar can help prevent corrosion.
  • Alkali-Aggregate Reaction (AAR): AAR is a chemical reaction between certain reactive aggregates and the alkaline hydroxides in cement paste. This reaction can cause expansion and cracking of the concrete. Using non-reactive aggregates and low-alkali cements can prevent AAR.
• Workability: Workability refers to the ease with which concrete can be mixed, transported, placed, and consolidated. It is influenced by the water content, aggregate characteristics, and the presence of admixtures. A workable concrete mix will be cohesive, flow easily, and be easy to finish.
• Permeability: Permeability refers to the ability of water and other fluids to penetrate the concrete. Low-permeability concrete is more resistant to deterioration from freeze-thaw cycles, chemical attack, and corrosion of reinforcing steel. A low water-cement ratio and proper curing are key to achieving low permeability.
• Thermal Properties: Concrete has a relatively low thermal conductivity, meaning it is a good insulator. It also has a relatively high thermal mass, meaning it can store heat. These properties can contribute to energy efficiency in buildings.
• Shrinkage: Concrete shrinks as it dries. This shrinkage can lead to cracking, especially in large concrete slabs. Proper mix design, curing, and the use of shrinkage-reducing admixtures can minimize shrinkage cracking.
• Creep: Creep is the gradual deformation of concrete under sustained load. It can be significant in long-span concrete structures. Proper design and the use of high-strength concrete can mitigate creep.

5. Manufacturing Concrete: From Batching to Curing

The manufacturing of concrete involves a series of steps, from selecting the right materials to properly curing the finished product.

• Mix Design: The first step is to design the concrete mix to meet the required strength, durability, and workability specifications. This involves selecting the appropriate types and proportions of cement, aggregates, water, and admixtures. The mix design is typically performed by a qualified engineer or concrete technologist.
• Batching: Batching involves accurately measuring and combining the ingredients of the concrete mix. This can be done manually, but is usually automated in modern concrete plants. The ingredients are typically batched by weight, as this is more accurate than batching by volume.
• Mixing: The batched ingredients are then mixed thoroughly to create a homogenous concrete mix. Mixing can be done in central mix plants, where the concrete is mixed before being transported to the job site, or in truck mixers (ready-mix trucks), where the concrete is mixed during transportation. Proper mixing is essential to ensure that the cement is evenly distributed and that the aggregates are properly coated.
• Transporting: The mixed concrete must be transported to the job site quickly and efficiently. Ready-mix trucks are the most common method of transportation, but other methods, such as pumping and conveying, may be used for large projects or projects with limited access.
• Placing: Once the concrete arrives at the job site, it must be placed in the forms or prepared area. Proper placement is essential to avoid segregation (separation of the aggregates from the cement paste) and to ensure that the concrete is properly consolidated.
• Consolidation: Consolidation involves removing air pockets from the concrete mix. This is typically done by vibrating the concrete with a vibrator. Proper consolidation is essential to achieve maximum density and strength.
• Finishing: After consolidation, the concrete surface is finished to the desired texture. Finishing can involve screeding, floating, troweling, and texturing.
• Curing: Curing is the process of maintaining adequate moisture and temperature in the concrete during the early stages of hydration. Proper curing is essential to ensure that the concrete achieves its full strength and durability. Curing methods include:
  • Water Curing: Keeping the concrete surface continuously wet by ponding, spraying, or covering with wet burlap or other absorbent materials.
  • Membrane Curing: Applying a liquid membrane-forming compound to the concrete surface to prevent moisture loss.
  • Steam Curing: Exposing the concrete to steam in a controlled environment to accelerate hydration and strength development.

6. Types of Concrete: Tailoring the Mix for Specific Applications

Concrete comes in various types, each designed with specific properties and performance characteristics for different applications.

• Normal Strength Concrete: This is the most common type of concrete, with compressive strengths typically ranging from 2,500 psi to 5,000 psi (17 MPa to 34 MPa). It is used in a wide range of applications, including pavements, foundations, walls, and floors.
• High-Strength Concrete: High-strength concrete has compressive strengths of 6,000 psi (41 MPa) or higher. It is used in high-rise buildings, bridges, and other structures where high strength and durability are required.
• Lightweight Concrete: Lightweight concrete is made with lightweight aggregates, such as expanded shale, clay, or slate. It is used to reduce the dead load of structures and improve thermal insulation.
• Heavyweight Concrete: Heavyweight concrete is made with heavy aggregates, such as magnetite or barite. It is used for radiation shielding in nuclear power plants and hospitals.
• Self-Consolidating Concrete (SCC): SCC is a highly flowable concrete that can spread into place under its own weight without the need for vibration. It is used in complex formwork, heavily reinforced structures, and applications where vibration is difficult.
• Fiber-Reinforced Concrete (FRC): FRC contains fibers, such as steel, glass, or synthetic fibers, to improve its tensile strength, toughness, and crack resistance. It is used in pavements, slabs, and shotcrete applications.
• Shotcrete: Shotcrete is concrete that is pneumatically projected onto a surface. It is used for slope stabilization, tunnel linings, and repair work.
• Pervious Concrete: Pervious concrete is a porous concrete that allows water to drain through it. It is used for pavements, parking lots, and sidewalks to reduce stormwater runoff.
• Roller-Compacted Concrete (RCC): RCC is a dry, zero-slump concrete that is compacted by rollers. It is used for dams, pavements, and industrial floors.
• Geopolymer Concrete: Geopolymer concrete is made with alternative binders, such as fly ash or slag, instead of Portland cement. It is considered a more sustainable alternative to traditional concrete due to its lower carbon footprint.

7. Applications of Concrete: From Infrastructure to Art

Concrete’s versatility and durability have made it an indispensable material in countless applications.

• Buildings: Concrete is used in the foundations, walls, floors, and roofs of buildings of all types, from single-family homes to skyscrapers. Reinforced concrete is particularly well-suited for high-rise construction due to its strength and fire resistance.
• Infrastructure: Concrete is essential for infrastructure projects, including bridges, highways, tunnels, dams, and airports. Concrete pavements are durable and can withstand heavy traffic loads.
• Water Management: Concrete is used for water treatment plants, reservoirs, canals, and sewers. It is resistant to water erosion and can be designed to withstand the pressures of water.
• Marine Structures: Concrete is used for docks, piers, seawalls, and offshore platforms. Special concrete mixes are used to resist the corrosive effects of seawater.
• Landscaping: Concrete is used for sidewalks, patios, driveways, and retaining walls. Decorative concrete finishes can add aesthetic appeal to landscapes.
• Art and Sculpture: Concrete is a versatile material for creating art and sculpture. It can be cast into various shapes and textures.
• Precast Concrete: Precast concrete elements, such as beams, columns, and wall panels, are manufactured in a controlled environment and then transported to the job site for assembly. Precast concrete offers advantages in terms of speed of construction, quality control, and cost-effectiveness.

8. Sustainability of Concrete: Addressing Environmental Concerns

While concrete is a durable and versatile material, its production and use can have significant environmental impacts. The cement industry is a major contributor to greenhouse gas emissions, and the extraction of aggregates can disrupt ecosystems. However, there are many efforts underway to improve the sustainability of concrete.

• Reducing Cement Content: Replacing a portion of the Portland cement with supplementary cementitious materials (SCMs), such as fly ash, slag, or silica fume, can reduce the carbon footprint of concrete. SCMs are byproducts of other industries that would otherwise be landfilled.
• Using Alternative Binders: Developing and using alternative binders, such as geopolymer concrete, can significantly reduce or eliminate the need for Portland cement.
• Improving Cement Production Processes: Implementing energy-efficient technologies and using alternative fuels in cement plants can reduce greenhouse gas emissions.
• Recycling Concrete: Demolished concrete can be crushed and used as aggregate in new concrete mixes, reducing the demand for virgin aggregates.
• Using Permeable Pavements: Pervious concrete pavements can reduce stormwater runoff, improve water quality, and reduce the urban heat island effect.
• Carbon Capture and Storage: Developing and implementing carbon capture and storage technologies in cement plants can capture CO2 emissions and store them underground.
• Life Cycle Assessment (LCA): Conducting life cycle assessments of concrete structures can help identify opportunities to reduce their environmental impact throughout their entire life cycle, from material production to demolition.
• Promoting Durability: Designing and constructing durable concrete structures can extend their service life, reducing the need for repairs and replacements, and minimizing the overall environmental impact.

9. Future Trends in Concrete Technology

The future of concrete technology is focused on developing more sustainable, durable, and high-performance materials.

• Self-Healing Concrete: Researchers are developing concrete that can repair its own cracks using various mechanisms, such as bacterial encapsulation or the incorporation of mineral precursors.
• Smart Concrete: Integrating sensors into concrete structures can provide real-time monitoring of their condition, allowing for early detection of problems and preventative maintenance.
• 3D-Printed Concrete: 3D printing technology is being used to create complex concrete shapes and structures with greater precision and efficiency.
• Nanotechnology: Nanomaterials, such as carbon nanotubes and graphene, are being added to concrete to improve its strength, durability, and other properties.
• Bio-Concrete: Bio-concrete incorporates bacteria that can precipitate calcium carbonate to fill cracks and enhance the durability of the concrete.
• Carbon-Negative Concrete: Researchers are exploring methods to produce concrete that absorbs more carbon dioxide than it releases during its production.
• Increased Use of Recycled Materials: The use of recycled aggregates, supplementary cementitious materials, and other recycled materials in concrete is expected to increase in the future.
• Digitalization of Concrete Construction: Building Information Modeling (BIM), augmented reality (AR), and other digital technologies are being used to improve the design, construction, and management of concrete structures.

10. Conclusion: Concrete – A Material for the Ages

From its ancient origins to its modern applications, concrete has played a vital role in shaping our world. Its strength, durability, versatility, and affordability have made it the material of choice for countless construction projects. While challenges remain in terms of sustainability, ongoing research and innovation are paving the way for a more environmentally friendly and technologically advanced future for concrete. By understanding its composition, properties, manufacturing process, and the latest advancements, we can continue to harness the power of concrete to build a better and more sustainable future. Concrete is not just a material; it’s an enduring testament to human ingenuity and our ability to build structures that stand the test of time.
